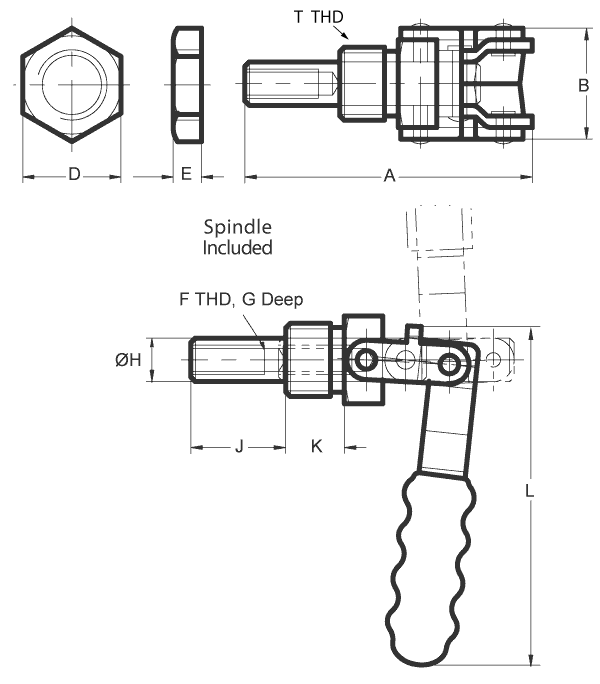

Holding Capacity | Plunger Stroke | A | B | D | E | F | G | H | J | K | L | T | Weight | IGS |
STEP | DWG |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
700 LBS. (318 kg) | 2.63 (66.7) | 6.66 (169.2) | 1.57 (40) | 1.48 (41) | 0.25 (6.4) | 3/8-16 | 1.26 (32) | 0.63 (15.9) | 2.72 (69) | 0.87 (22) | 5.37 (143) | 1"-12 | 1.52 LBS. (690 g) | Coming Soon | Coming Soon | Download |
-
