Good Hand
GH-36202
GH-36202
Regular price
$17.00 USD
Regular price
Sale price
$17.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

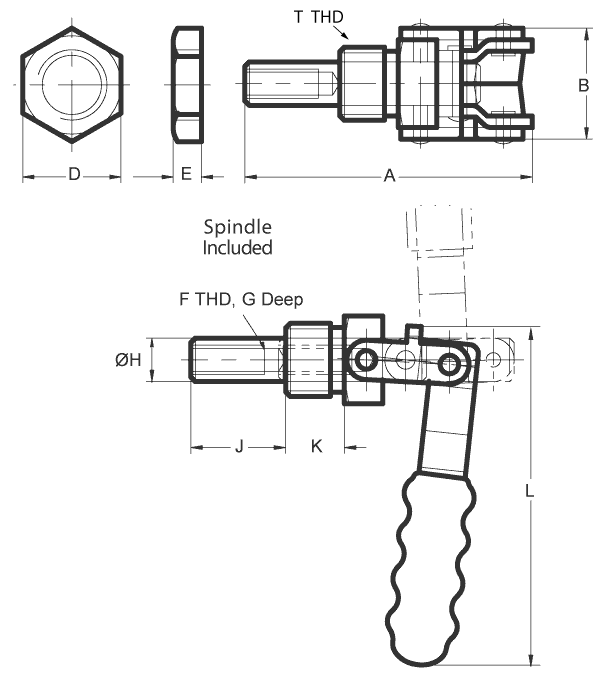

| Holding Capacity | Plunger Stroke | A | B | D | E | F | G | H | J | K | L | T | Weight | IGS |
STEP | DWG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 200 LBS. (91 kg) | 0.80 (20.3) | 2.53 (64.3) | 0.95 (24) | 0.91 (23) | 0.25 (6.4) | 1/4-20 | 0.62 (15.8) | 0.37 (9.4) | 0.84 (21.3) | 0.50 (12.7) | 3.1 (78) | 5/8-18 | 0.25 LB. (113 g) | Coming Soon | Coming Soon | Download |
-
