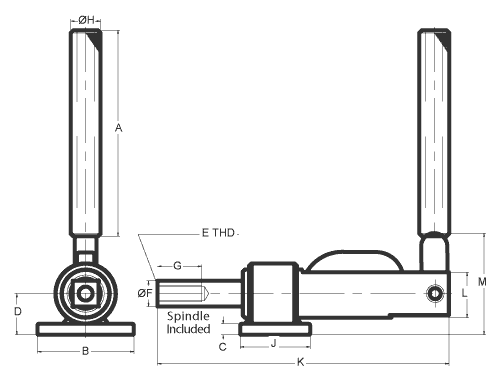

Holding Capacity | Spindle Supplied | Plunger Stroke | A | B | C | D | E | F | G | H | J | K | L | M | Weight | IGS | STEP | DWG |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5,000 LBS. (2,273 kg) | GH-SA-58500 | 3.06 (78) | 6" (152.4) | 3.56 (90.5) | 0.44 (11.2) | 1.58 (40) | 5/8-11 | 1" (25.4) | 1.5 (38.1) | 1.07 (27.2) | 2.69 (68.3) | 11.14 (283) | 1.75 (44.4) | 3.43 (87) | 7.72 LBS. (3,500 g) | Coming Soon | Coming Soon | Download |
-
