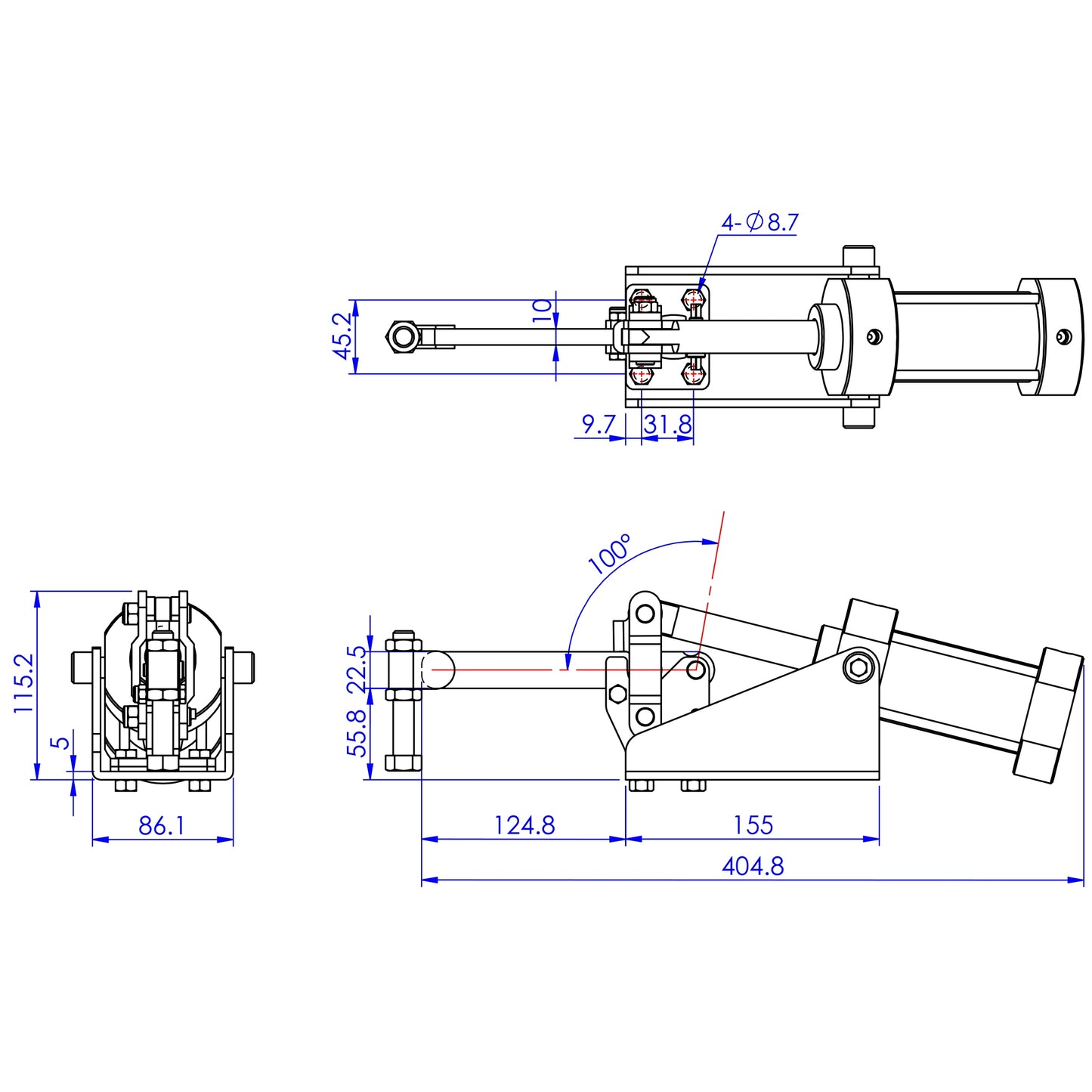

Holding Capacity | Spindle Supplied | Bar Opens | Cylinder Bore | Cylinder Stroke | Max Air Pressure | A | B | C | D | E | F | G | H | Weight | IGS | STEP | DWG |
800 LBS (364 kg) | GH-FC-12300 | 95° | 2 (50) | 7.73 (196.3) | 10kgf/cm2 | 1.78 (45.2) | 0.74 (19) | 1.25 (31.8) | 0.33 (8.3) | 4.33 (110) | 2.18 (55.3) | 4.52 (114.8) | 16.02 (407) | 3.73 kg | Download | Download | Download |
-
