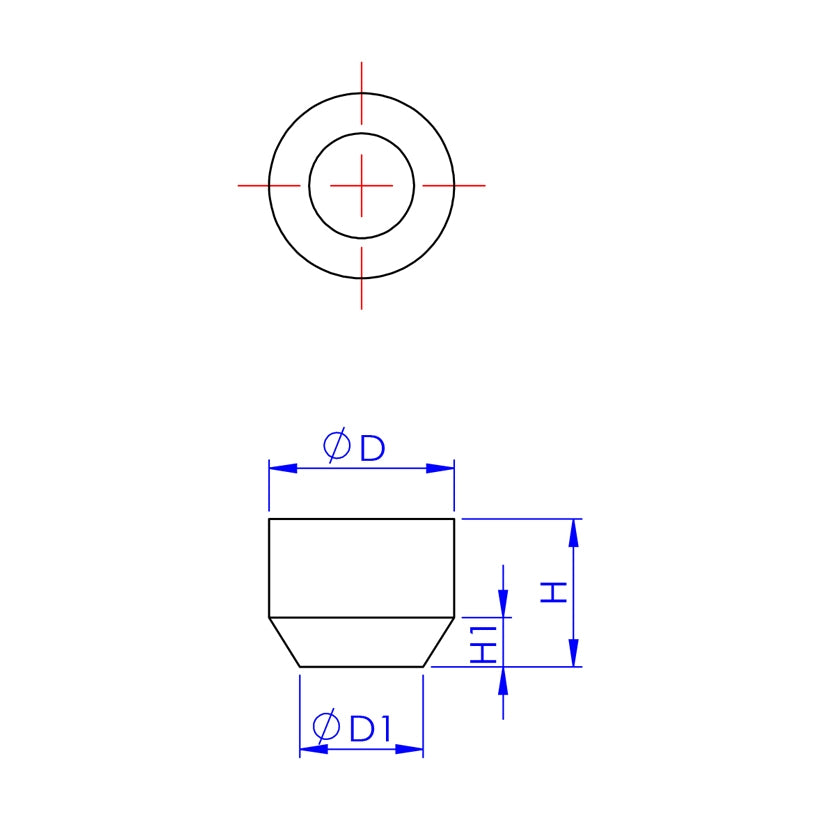

Application Dimensions
Part No.
|
Description
|
D
|
D1
|
H
|
H1
|
---|---|---|---|---|---|
GH-NC-04
|
For M4 spindles
|
11
|
7
|
8.5
|
4
|
GH-NC-05
|
For M5 spindles
|
12.5
|
8
|
10
|
4
|
GH-NC-06
|
For M6 spindles
|
15
|
10
|
12
|
4
|
GH-NC-08
|
For M8 spindles
|
19
|
13
|
15
|
6
|
GH-NC-10
|
For M10 spindles
|
22
|
15
|
17.5
|
7
|
GH-NC-12
|
For M12 spindles
|
26
|
19
|
20
|
7
|
GH-NC-16
|
For M16 spindles
|
33
|
24
|
27
|
8
|
GH-NC-140
|
For 1/4" spindles
|
15
|
10
|
12
|
4
|
GH-NC-516
|
For 5/16" spindles
|
19
|
-
|
12.5
|
-
|
GH-NC-380
|
For 3/8" spindles
|
22
|
15
|
17.5
|
7
|
GH-NC-120
|
For 1/2" spindles
|
29
|
-
|
16
|
-
|
-
